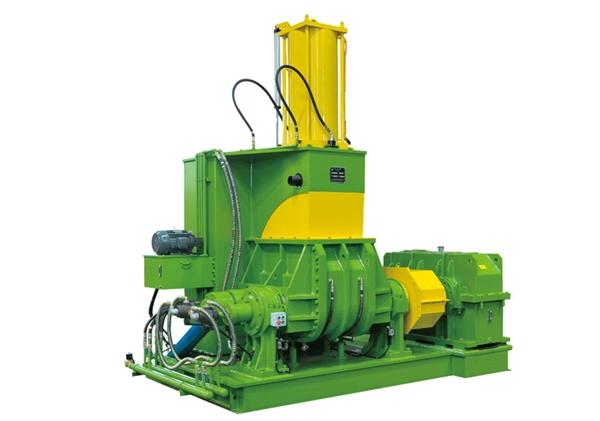

The machine rotor is the special type of eliptic shear, the surface of mixing chamber、 Mixing rotor and pressurecover allare welding with hardened alloy, plating with hardened chrome, Grinding and then Polishing treatment foreaching standard ofhigh wearing-resistance, hiah corrosion resistance and more durable, The structure inside ofMixing chamber、 rotor and pressurecover are special adopt the circulatory channel design of heaing and cooling innedium, the circulatory system inside of heaingand cooling which is avallable in applying steam and water as mediumhe rotor is made in high guality axle material which ismostly used for making train, special structure, powerfulransmission force, adopting heavy duty cylindrical roler bearing, easy tomaintenance and more durable.About theransmission reduction device which is horizontal iype, hardened surtace tooth of gearspecial structure, hicheficient.lower running noise and easy to maintenance, About the tilting and discharging material of mixingchamberhere are mechanical and hydraulic type as options. Conventional electric eguipment and imported electriccomponentswe adopt for electrical system which is more stable and durable.

Product Usage
used in rubber, plastic and chemical material plastication and mixing, suitable for shoes materials, chemical，raw materials,tires,seals,conveyor belt and other rubber and plastic industry.

Model	Mixing capacity(L)	Main motor power(kw)	Feed way	Unload way	Weight(kg)	Dimension((L×W×H)(mm)
X(S)N-150L	150	220/250	Back feed or front feed	Mechanical or hydraulic reverse	21000	4400×3500×4200
X(S)N-110L	110	160/185	Back feed or front feed	Mechanical or hydraulic reverse	14000	4200×3200×3500
X(S)N-95L	95	132	Back feed or front feed	Mechanical or hydraulic reverse	13000	4000×2724×3400
X(S)N-75L	75	110	Back feed or front feed	Mechanical or hydraulic reverse	11500	3673×2700×3400
X(S)N-55L	55	75	Back feed or front feed	Mechanical or hydraulic reverse	8000	3650×2700×3200
X(S)N-35L	35	55	Back feed or front feed	Mechanical or hydraulic reverse	6500	3100×2100×2800
X(S)N-20L	20	37	Front feed	Mechanical reverse	2000	2850×1950×2550
X(S)N-5L	5	7.5	Front feed	Mechanical reverse	1200	1500×1000×2100
X(S)N-3L	3	5.5	Front feed	Mechanical reverse	1000	1480×865×2080
