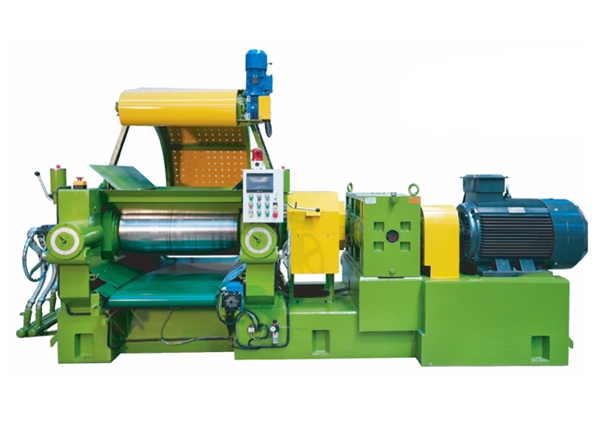

This machine is of horizontal double roller structure, by crushing host, return product structure, transmission device of three parts, EVA edge material first by smashing roller in under the action of shear force, strong edge material wasground into a powder and small block, again by the conveyor to return product institutions, edge material once again be sent tthe grinding roller, after repeated after broken can meet the production requirements, This machine structure is compact, theproduction efficiency greatly improved on traditional edge material processing method (yield increases about four times), it carsave manpower, and greatly reduce the labor intensity of workers, at the same time , this equipment is my company technicalstaff after fully understand EVA equilateral material crushing production technology combined with the technology of rubberand plastic machinery production in domestic exclusive research and development of new products,is wide suitability for EVA&rubber marketing.

Product Usage
Mainly used in cracking and make sheet for EVA, rubber and injection scrap material

Model	XKF-450(18寸)	XKF-510(20寸)	XKF-610(24寸)
Front roller dimension(mm)	360	450	480
Back roller dimension(mm)	450	510	610
Roller working length(mm)	800	1000	1000
Roller speed drive	1:1.91	1:1.91	1:1.82
Scope of adjust distance	0.1-10	0.1-10	0.1-10
Speed reducer	rizontal hard tooth face	horizontal hard tooth face	horizontal hard tooth face
Main motor power(kw)	55	75	90
Weight(kg)	11500	13500	16000
Installation size(mm)	4400*2600*2500	4000*2100*2300	4400*2400*2300
