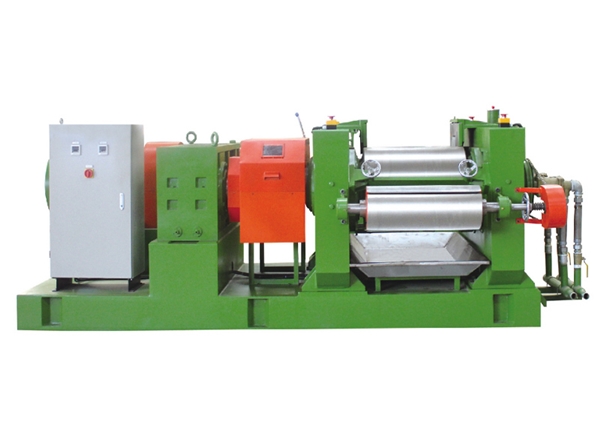

This machine is two horizontal roller structure, the use of roling bearing support roller,save electricity and energy saving.ser.vice life is long, thin oilubrication and oil lubrication in two ways,on the basis of reclaimed rubber production process can provide avariety of roller speed, roler adopt alloy chilled cast iron.hardness meet the national standard.inner cavity treatment of roll surfacetemperature uniformity.the forced circulation cooling,heat faster. Machine is equipped with overload protection and safetyemergency braking, fuly protect the machine main parts from being damaged and the operator safety during overload. Themachine adopts manual tuning is apart from the easy to operate,and with a scraper and automatic take-up device, convenient forrubber removed from the rol,the right and the left drive transmission machine, no request according to the right transmissionsupply when you order it.

Product Usage
This machine is mainly used for reclaimed rubber refining and the piece, in single machine of re-claimed rubber productiontechnology in the confiquration and multiple water machine configuration, achieve the best production effect.

Process flow diagram of waste tire recycling and treatment

New 3-machine 1-line automated production line for recycled rubber

Model	XKJ-480
Working diameter of front roll (mm)	480
Working diameter of back roll (mm)	610
Working length of roll (mm)	800、915、1000(Provide multiple specifications)
Linear speed of front Roll(mm)	32.8 (Provides multiple line speeds)
Friction ratio of rolls	1:1.82 (Provide wide range of speed ratio)
Max.roll gap(mm)	10
Lubrication way	Thin oil lubrication of dry oil lubrication
Output(kgh)	350
Main motor power(kw)	55 or75.110
Revolution (r/min)	980
Speed machine	Horizontal Machine of decelerate of hard tooth surface
Overall dimension(L*W*H)(mm)	4400*2450*1900
Weight(kg)	16000
