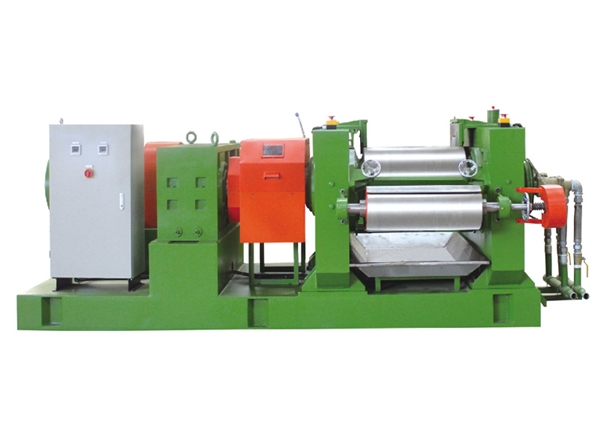

This machine is two horizontal roller structure,the use of roling bearing support roer,save electricity and energy saving,ser.vice life is long,thin oil lubrication or dry oil lubrication in two ways,on the basis of reclaimed rubber production process confiqura.tion a variety of speed ratio, shear strength, speed, mastication effect is good, using alloy chiledcast iron roller, hardness meet thenational standard, and roler are light roller, the machine can be divided into transmission and the let and right order without askingall the right transmission supply.

Product Usage
this machine is the basic equipment for the production of various kinds of reclaimed rubber,used for desulfurization powderafter mastication and reclaimed rubber plastication ,in single machine of reclaimed rubber production technology in the configura.tion and multiple water machine confiauration,achieve the best production effect.

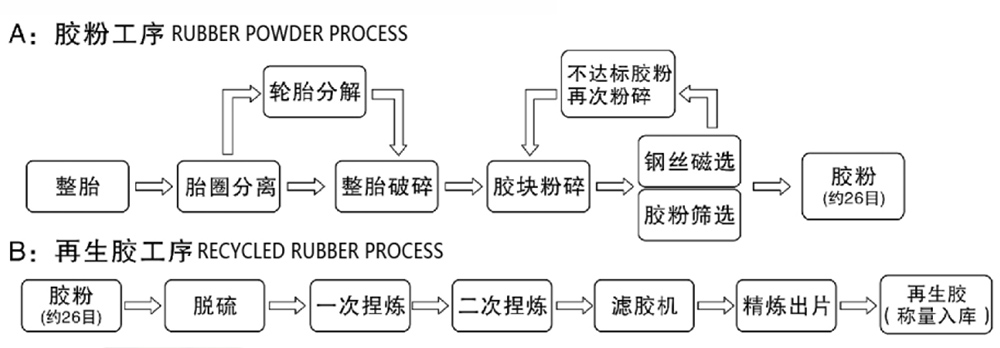

Process flow diagram of waste tire recycling and treatment

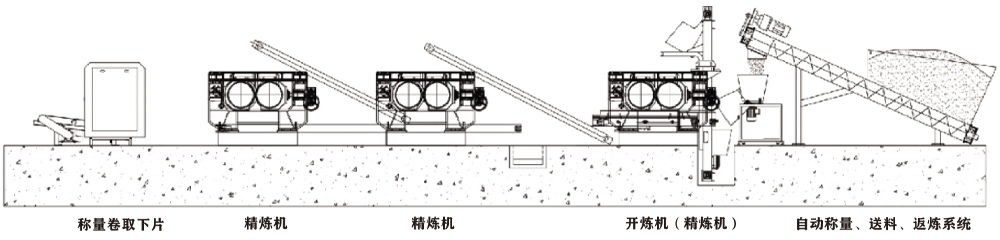

New 3-machine 1-line automated production line for recycled rubber

Model	XKN-510
Diameter of front roll (mm)	450
Diameter of back roll (mm)	510
Working length of rolls(mm)	1000
Linear speed of front roll (m/min)	29.2 (Provides multiple line speeds)
Friction ratio of rolls	1:1.91( Provide awide range of speed ratio)
Range of nip adjustment(mm)	0.1-10
Lubrication way	Thin oil lubrication or dry oil lubrication
Capacity per batch(kg)	30-50
Model of main motor	Y280M-6
Power(kw)	55
Revolution(r/min)	980
Reducer	Horizontal machine of decelerate of hard tooth surface
Overall dimension(L*W*H)(mm)	4400*1800*1500
Total weight (kg)	11500
