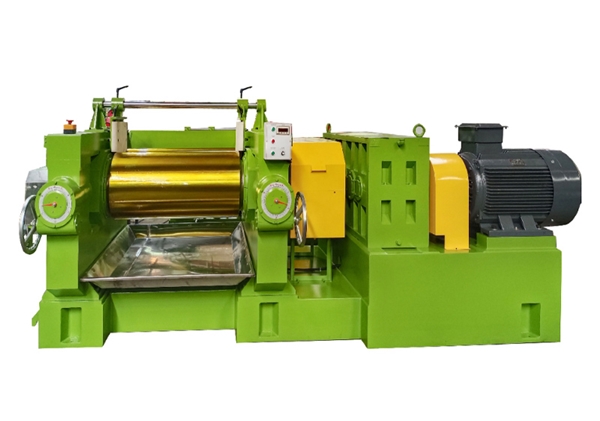

This machine is a two-roller horizontal structure. When working, the material is cut and squeezed by powerfully tighteningthe rollers, and under the action of high temperature, the material is produiced into ultra-thin sheets (about 0.10mm) , and thenrolled up and weighed for storage. Due to the requirements of product thickness and producion capacity, the machine has madespecial requirements on the parameters and strength of the work rol, beating load and transmission efficiency to ensure the useeffect. This machine is divided into various specifications, and the user can choose according to the production capacilyreaurrements.

Product Usage
Mainly be used for EVA injection first extrusion waste (chicken-leg shape material) and waste EVA soles (pulling).

Model	XKL-450(18寸)	XKL-550 (22寸)
Roller Diameter × Length(mm)	450×1000	550×1200
Rear roller linervelocity (m/min)	44.5	48.5
Rollerspeed ratio	1.27	1.3
Motorhorse power(kw)	55	75
Dimension(L×W×H)(mm)	4500×1900×1700	5200×1900×2200
Weight(kg)	10500	15000
