EVA Granula Machine

Home - Products - EVA Granula Machine

EVA Water Cooling Granule Compound Line

Service hotline:

0595-8593 0895

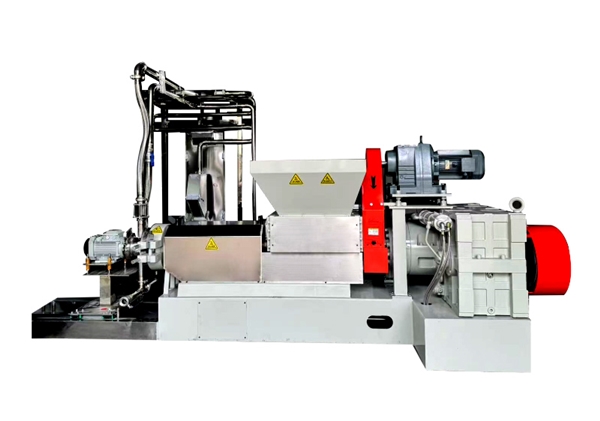

The underwater pelletizer is a set of pelletizing system for plastic processing. The material is extruded through the die holes by the screw and then cut into pellets by the high-speed rotating alloy knife. The pellets are transported together with the cooling water to the centrifugal dewatering machine for dewatering, and then enter the reciprocating vibrating screen for air cooling and air conveying to the horizontal mixing barrel for storage and future use. During the pelletizing process, the die surface, material, and cutting knife are all placed in the cooling water. It is particularly suitable for thermoplastic plastics, elastomers, and soft materials with high melt viscosity, such as EVA, SEBS, TPU, etc. This machine adopts automatic control and is simple and convenient to operate.

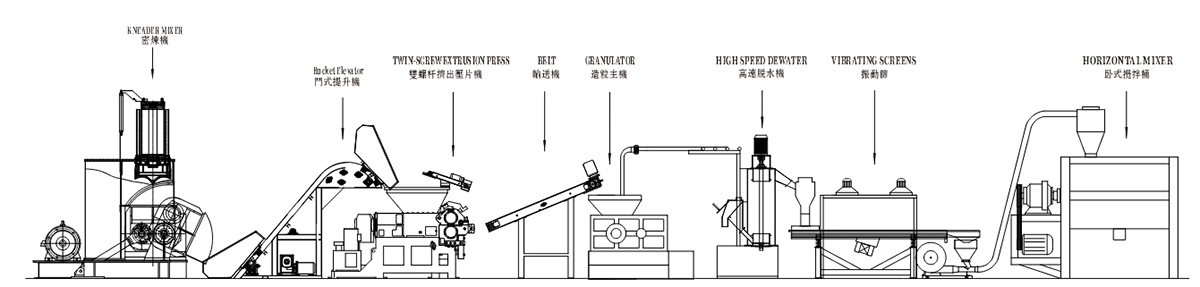

Technological Process

机型 YCS-70 YCS-100 YCS-120 YCS-150 YCS-165 YCS-180
产量(kg) 15-80 150-250 300-450 450-600 550-750 600-900
螺杆直径(mm) 70 100 120 150 165 180
螺杆长径比 12 12 12 12 12 12
主机功率(kw) 7.5 37 45 55 55 75
电热功率(kw) 4.8 10 11 12.2 12.6 13.3
温控段数 3 4 4 4 4 4
双挽喂料功率(kw) 2.2 5.5 5.5 7.5 7.5 7.5
切粒功率(kw) 1.5 3.7 3.7 3.7 3.7 3.7
水泵功率(kw) 1.5 3.7 3.7 3.7 3.7 3.7
脱水机功率(kw) 3.7 5.5 5.5 5.5 5.5 5.5
振动筛功率(kw) 0.5 1 1 1 1 1
送料风机功率(kw) 2.2 3.7 3.7 5.5 7.5 7.5
搅拌桶容量(kg) 200 600 600 1000 1000 1000
If you are interested in the above products, please fill out the form below and the relevant personnel will contact you promptly.
